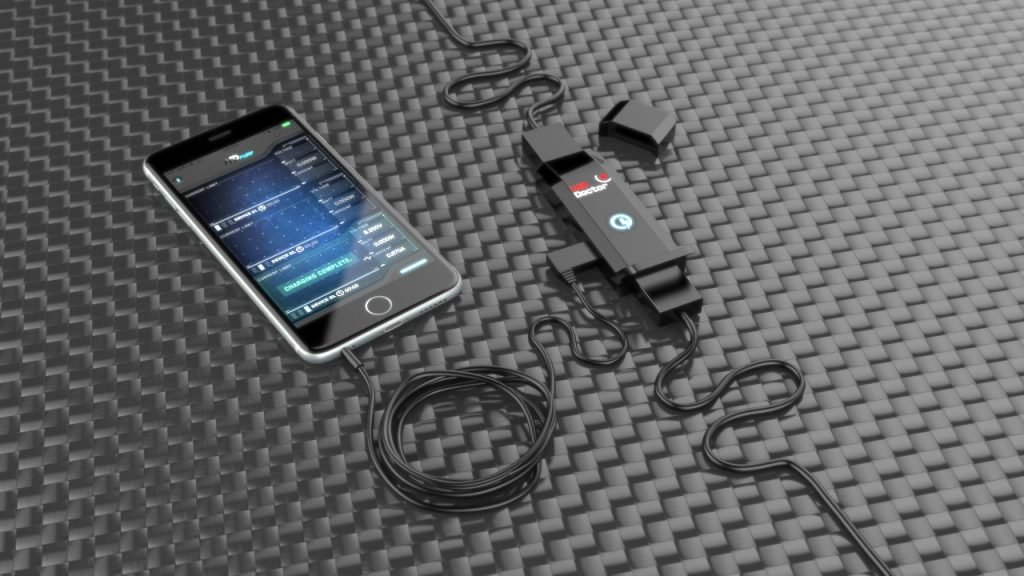

Universal USB 5v to QC2.0 Smart&Fast Charger Adapter

Safely turn ANY USB ports into an Universal USB fast-charging port.
Compatible with Android&Apple smartphone or tablet as well as Xbox 360, PS3, PS4 pads and many others.

• Speed up charging time up to 2 times.
• Android and iOS APP for monitoring.
• Support official Apple Sync cable or cheap cloned one.
• Charge in any USB port that otherwise would not work with your device.
• Safe charging: Protect your smartphone/tablet from malware and data theft.
• Prevents accidental data exchange when your device is plugged into a computer or charging station with a USB cable.
• Charge your phone on any computer or charging stations in public without worrying.
• Enhance the quality of the electric current supplied by USB port for fast charging without harming device and/or battery.

Specifications:

• Turn a normal USB cable into a “charge only” cable.
• Fully supports Smart phones and Tablets (IOS and Android OS) for any brand models and ps3/ps4/xbox360 joypad.
• Fully supports PC USB port, Power bank, Car charger and Travel Charger Power.
• Autodetect the operating system IOS or Android charging mode and/or Joypad mode.
• Lightweight and easily portable to wherever you are at home, office, traveling or in the car.
• Dimension: 8.5 (L) * 2.4 (W) * 1.4 (H) cm.
• Weight: 12g
• Rohs Compliant
• CE and FCC Compliant
• Ultra-Low Power Technology
• Input: More than 5V2A recommended for optimal performance
• Output: 5V2.14A, 9V1.6A or 12V1.2A
• Stop (RAM retained): 0.23 μA, (LVD enabled): 0.31 μA
• Snooze: 0.7 mA (UART), 1.20 mA (ADC)
• Operating: 63 μA /MHz
• 16-bit RL78 CPU Core
• ADC: Up to 11 channels, 10-bit resolution
• On-chip temperature sensor

Instructions

Place it as an “always on” adapter on your existing USB/Sync cable and remove only when you want to sync.



Plug Dr.USB QC2.0 to any USB port or charger.
Central Led/Button allow you to select the operating and power saving mode.

1. Hold the Central Led/Button when connecting Dr.USB QC2.0 to USB port or charger to select you preferred operating mode:
If Led flash from Bright to Dark: its in Android mode, If Led flash from Dark to Bright: its in Apple mode.

2. Once connected you can press the Central Led/Button to select power saving mode:
Press once for Always Power On mode, Press twice for auto power off after charge is complete, Press three times for autopower off after charge is complete and perform a wake up check every 30min.
To save your preferred power saving mode, simply hold the central Led/Button for +2sec

FAQ

Q:How do I know in which predefined mode the unit is?
A: When you plug the USB Doctor QC2.0 dongle to a USB Power Supply (PSU) or USB port, you can observe that the LED will “fade to black” (light to dark) means its in Android QC2.0 mode or “fade to white” (dark to light) mean its in Apple mode.

Q:How I can change the predefined mode?
A: If you plug the dongle while holding the tag switch, it will switch mode and save it to internal memory.

Q:If I connect an apple device when the unit is in Android QC2.0 mode, what will happen?
A: Once QC2.0 charging routines confirm the unit is not compatible, USB Doctor QC2.0 will autoswitch to apple mode for charging the connected apple device at max output power.

Q:How can I check in which power saving profile the unit is set ?
A: USB Doctor QC2.0 have power saving profile:
A: Always power on
B: Auto power off after charge is complete
C: Auto power off after charger is complete and will auto check every 30min if battery needs more charge.

When the dongle is plug in a PSU or USB port, press the tag switch once and the LED will flash:
If LED flash 1 time, it means mode A, if LED flash 2 times, it means mode B, flash 3 times means mode C.
Simply repress the tag switch to change mode and you can hold the tag switch for 2sec to save the current state in order to avoid a new setup every.
After long press for 2 sec, you will see the LED light up for 2 sec, it confirms that settings are successfully saved.
You can use the supplied macro USB to earphone connector cable for Android/iOS APP monitoring.
